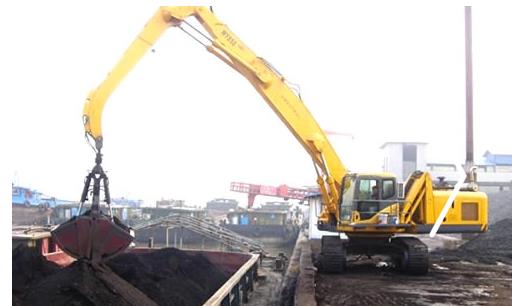

WYS50 crawler type steel grab is used in steel plants
Main advantages of the product:
1. "Dual power" drive is adopted, which is driven by both internal combustion engine power and 380V electric power. On the premise of operating efficiency on a year-on-year basis, the cost of using electricity is one-third of the oil consumption, and the electric operation does not discharge waste pollution, nor does it discharge fireworks. It is energy-saving and environmental friendly, and can be operated in key fire prevention units.
2. Diversified product groups and personalized development of special working conditions can fully meet the operating requirements of customers under different working conditions. In terms of driving forms, there are "dual power" system, single internal combustion engine drive and single electric drive; The forms of getting off the train are: tire type, crawler type, fixed type, which can meet the complex ground environment and customer requirements; The range of lifting torque ranges from 20t m to 100t m, which can realize longer distance grasping operations, deeper depth grasping operations and higher height stacking operations; The cab can be of free lifting type. On the basis of the original height, the cab can be lifted freely within the range of 0~3m; The fixed elevating type can also be selected. According to the customer's needs, the cab will be fixed 1 m, 1.5 m, and 2 m higher, which greatly improves the driver's vision, facilitates grasping materials, and improves the operating efficiency.
3. It can be installed with 0.6m3-3.0m3 different hydraulic grab buckets and 900-1200mm electromagnetic suction cups to grasp (suck), place, load and unload and feed scrap and other different goods;
4. The pilot operated hydraulic control system is adopted, which is comfortable to operate and has good operation performance. The slewing mechanism is designed with auxiliary brake buffer device, which greatly improves the impact resistance and operation reliability of the slewing mechanism;
5. It is equipped with perfect safety protection device, electronic weighing system, automatic centralized lubrication system and preheating device (it can work normally from minus 30 ℃ to minus 40 ℃); The electric operation system is designed with over-current, overload, overheating, leakage and other protection functions. Y/△ step-down starting and automatic cable retractor are used;
6. All key components are imported, greatly extending the service life of the whole machine and reducing maintenance costs,
7. A variety of different operation grabs can be replaced, such as scrap steel, garbage grab (to grab irregular materials with continuous pulling), clam type grab (to grab bulk materials such as coal sand, ore, iron powder, etc.), wood grab, various kinds of gripper type and gripper type grab, realizing the multi-purpose function of one machine.
